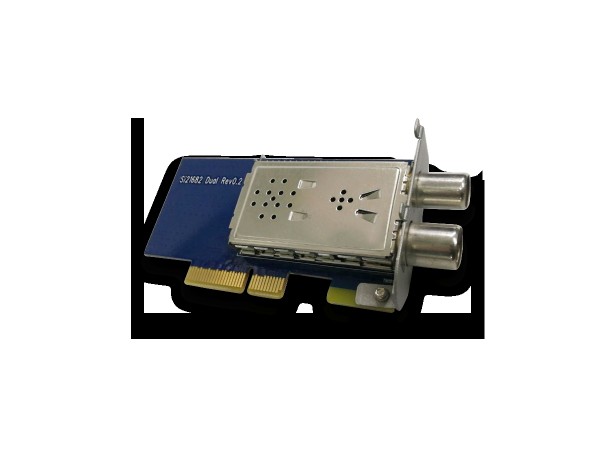

Axas DVB-C/T2 Hybrid Dual 4k HDTV Kabel Tuner

Artikelmerkmale

•     Der Plug & Play Tuner für die Axas bietet sich für digitales Kabel sowie       digitales terrestrisches Fernsehen an
•     Tuner dual input/output: IEC-connector
•     DVB-C, DVB-T oder DVB-T2 can be set by the software, DVBC HD ready
•     DISEqC: 1.0, 1.1, 1.2, 2.0

DVB-T2

•     Bandwidth 5, 6, 7, 8MHz and 1.7MHz
•     FET size 1K, 2K, 4K, 8K, 16K, 32K (Included extended mode)
•     Guard interval length 1/32, 1/16, 1/8, 1/4, 1/128, 19/128, 19/256
•     Carrier modulation scheme QPSK, 16QAM, 64QAM, 256QAM
•     Convolutional-coding rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
•     Synchronization(AFC) rate ±900KHz

DVB-T

•     Bandwidth 6, 7, 8MHz
•     FET size 2K, 8K
•     Guard interval length 1/32, 1/16, 1/8, 1/4
•     Carrier modulation scheme QPSK, 16QAM, 64QAM
•     Convolutional-coding rate 1/2, 2/3, 3/4, 5/6, 7/8
•     Synchronization(AFC) rate ±900KHz

DVB-C

•     Constellation 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
•     Symbol rate 0.7~7Msps
•     Synchronization(AFC) rate ±500KHz

DVB-C/T2 Hybrid Dual Kabel Tuner passend für Axas Linux E2 Sat 4k HDTV Receiver
